Electrochemistry And Electrochemical Cells

Electrochemistry and electrochemical cells are fundamental concepts in the field of chemistry, playing a crucial role in various applications ranging from batteries and fuel cells to corrosion science and electroplating. Understanding the principles behind these processes is essential for anyone interested in the intersection of chemistry and electricity.

Understanding Electrochemistry

Electrochemistry is the branch of chemistry that deals with the relationship between electrical energy and chemical change. It involves the study of chemical reactions that produce electricity and the use of electrical energy to drive chemical reactions. The key components of electrochemistry include electrodes, electrolytes, and the electrochemical cell.

An electrochemical cell is a device that converts chemical energy into electrical energy or vice versa. There are two main types of electrochemical cells: galvanic cells and electrolytic cells.

Galvanic Cells

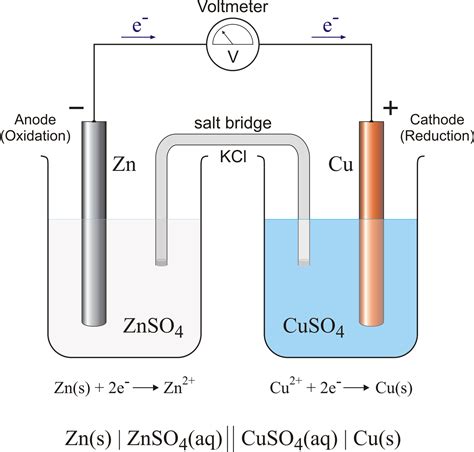

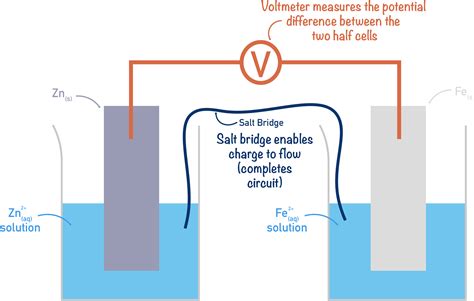

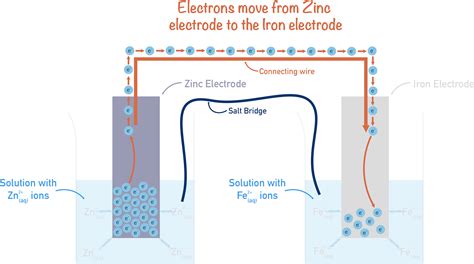

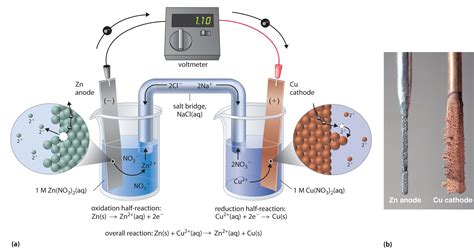

A galvanic cell, also known as a voltaic cell, is an electrochemical cell that converts chemical energy into electrical energy. It consists of two half-cells, each containing an electrode (anode and cathode) immersed in an electrolyte solution. The anode is the site of oxidation, where electrons are released, while the cathode is the site of reduction, where electrons are gained.

The overall reaction in a galvanic cell can be represented as:

Oxidation at the anode: Zn(s) → Zn²⁺(aq) + 2e⁻

Reduction at the cathode: Cu²⁺(aq) + 2e⁻ → Cu(s)

Overall reaction: Zn(s) + Cu²⁺(aq) → Zn²⁺(aq) + Cu(s)

Galvanic cells are widely used in batteries, where chemical reactions produce a flow of electrons, generating electrical energy.

Electrolytic Cells

An electrolytic cell is an electrochemical cell that uses electrical energy to drive a non-spontaneous chemical reaction. In this type of cell, an external power source is required to supply the necessary energy. The anode is positively charged, and the cathode is negatively charged. The reactions at the electrodes are opposite to those in a galvanic cell.

The overall reaction in an electrolytic cell can be represented as:

Oxidation at the anode: 2Cl⁻(aq) → Cl₂(g) + 2e⁻

Reduction at the cathode: 2H₂O(l) + 2e⁻ → H₂(g) + 2OH⁻(aq)

Overall reaction: 2Cl⁻(aq) + 2H₂O(l) → Cl₂(g) + H₂(g) + 2OH⁻(aq)

Electrolytic cells are used in processes such as electroplating, where a metal is deposited onto a surface, and in the production of chemicals like chlorine and hydrogen.

Components of Electrochemical Cells

The key components of an electrochemical cell include electrodes, electrolytes, and the cell itself. Understanding these components is essential for grasping how electrochemical cells function.

Electrodes

Electrodes are conductors through which electrons enter or leave the cell. There are two types of electrodes in an electrochemical cell: the anode and the cathode.

Anode: The electrode where oxidation occurs, releasing electrons into the external circuit.
Cathode: The electrode where reduction occurs, gaining electrons from the external circuit.

Electrodes can be made from various materials, including metals like zinc, copper, and platinum, depending on the specific application and the chemical reactions involved.

Electrolytes

Electrolytes are solutions or molten salts that conduct electricity due to the presence of ions. They facilitate the movement of ions between the electrodes, completing the circuit. Common electrolytes include aqueous solutions of acids, bases, and salts.

In a galvanic cell, the electrolyte solution allows the transfer of ions between the anode and cathode, maintaining electrical neutrality. In an electrolytic cell, the electrolyte solution enables the flow of ions to complete the circuit and drive the chemical reaction.

Applications of Electrochemistry and Electrochemical Cells

Electrochemistry and electrochemical cells have a wide range of applications in various industries. Some of the most notable applications include:

Batteries

Batteries are a common example of galvanic cells, where chemical energy is converted into electrical energy. They are used in a variety of devices, from small portable electronics to large-scale energy storage systems. Different types of batteries, such as alkaline, lithium-ion, and lead-acid batteries, utilize different chemical reactions to generate electricity.

Fuel Cells

Fuel cells are electrochemical devices that convert the chemical energy of a fuel (such as hydrogen) into electrical energy. They are highly efficient and produce minimal pollution, making them an attractive option for clean energy applications. Fuel cells are used in vehicles, portable power sources, and stationary power generation systems.

Electroplating

Electroplating is a process that uses an electrolytic cell to deposit a thin layer of metal onto a surface. This technique is widely used in industries such as automotive, aerospace, and electronics to enhance the properties of materials, such as corrosion resistance, conductivity, and aesthetic appeal. Common metals used in electroplating include gold, silver, chromium, and nickel.

Corrosion Science

Corrosion is an electrochemical process where a metal is oxidized, leading to its degradation. Understanding the principles of electrochemistry is crucial for developing strategies to prevent or mitigate corrosion. Techniques such as cathodic protection and the use of corrosion inhibitors are based on electrochemical principles.

Sensors and Analytical Instruments

Electrochemical sensors and analytical instruments are used to detect and measure various chemical species. These devices rely on electrochemical reactions to produce a measurable signal, such as a current or voltage, which can be correlated to the concentration of the analyte. Examples include pH meters, glucose sensors, and environmental monitoring devices.

Key Concepts in Electrochemistry

To fully understand electrochemistry and electrochemical cells, it is important to grasp several key concepts, including standard electrode potentials, Nernst equation, and Faraday's laws of electrolysis.

Standard Electrode Potentials

Standard electrode potentials are measures of the tendency of a half-reaction to occur at standard conditions (25°C, 1 atm pressure, and 1 M concentration). They are used to predict the spontaneity of redox reactions and to calculate cell potentials. The standard hydrogen electrode (SHE) is the reference point for measuring standard electrode potentials, with a value of 0.00 V.

For example, the standard electrode potential for the reduction of copper ions is:

Cu²⁺(aq) + 2e⁻ → Cu(s) E° = +0.34 V

This value indicates that copper ions have a strong tendency to be reduced to copper metal.

Nernst Equation

The Nernst equation is used to calculate the cell potential (E_cell) under non-standard conditions. It takes into account the concentrations of reactants and products, as well as the temperature. The equation is given by:

E_cell = E°_cell - (RT/nF) ln(Q)

Where:

E_cell is the cell potential under non-standard conditions.
E°_cell is the standard cell potential.
R is the universal gas constant (8.314 J/(mol·K)).
T is the temperature in Kelvin.
n is the number of moles of electrons transferred in the balanced equation.
F is the Faraday constant (96,485 C/mol).
Q is the reaction quotient, which is the ratio of the concentrations of products to reactants raised to their respective stoichiometric coefficients.

The Nernst equation is essential for understanding how changes in concentration and temperature affect the cell potential.

Faraday's Laws of Electrolysis

Faraday's laws of electrolysis describe the relationship between the amount of electrical charge passed through an electrolyte and the amount of chemical reaction that occurs. The first law states that the mass of a substance liberated at an electrode is directly proportional to the quantity of electricity passed through the electrolyte. The second law states that the masses of different substances liberated by the same quantity of electricity are proportional to their equivalent weights.

Faraday's laws are fundamental for calculating the amount of product formed in an electrolytic cell and for designing electrochemical processes.

📝 Note: Faraday's laws are particularly useful in industrial applications where precise control over the amount of product formed is required.

Safety Considerations in Electrochemistry

Working with electrochemical cells and electrochemistry involves handling chemicals and electrical components, which can pose safety risks. It is essential to follow proper safety protocols to minimize these risks.

Some key safety considerations include:

Wearing appropriate personal protective equipment (PPE), such as gloves, safety glasses, and lab coats.
Handling chemicals in a well-ventilated area to avoid inhalation of harmful fumes.
Using insulated tools and equipment to prevent electrical shocks.
Properly disposing of chemical waste according to local regulations.
Ensuring that the electrochemical cell is properly grounded to prevent short circuits.

By following these safety guidelines, you can minimize the risks associated with electrochemistry and electrochemical cells.

📝 Note: Always consult safety data sheets (SDS) for specific chemicals and follow institutional safety protocols.

Future Directions in Electrochemistry

Electrochemistry and electrochemical cells continue to evolve, driven by advancements in materials science, nanotechnology, and renewable energy. Some of the exciting future directions in this field include:

Advanced Battery Technologies

Researchers are developing new battery technologies with higher energy densities, faster charging times, and longer lifespans. Examples include solid-state batteries, lithium-sulfur batteries, and redox flow batteries. These advancements are crucial for electric vehicles, grid storage, and portable electronics.

Next-Generation Fuel Cells

Next-generation fuel cells, such as solid oxide fuel cells (SOFCs) and proton exchange membrane fuel cells (PEMFCs), offer improved efficiency and durability. These fuel cells are being developed for various applications, including transportation, stationary power, and portable devices.

Electrochemical Energy Storage

Electrochemical energy storage systems, such as supercapacitors and hybrid energy storage devices, are being developed to complement batteries. These systems offer high power density and fast charging capabilities, making them suitable for applications requiring rapid energy delivery.

Electrochemical Sensors

Advances in materials science and nanotechnology are leading to the development of highly sensitive and selective electrochemical sensors. These sensors are used in various fields, including environmental monitoring, medical diagnostics, and food safety.

Electrochemistry and electrochemical cells are at the forefront of technological innovation, driving advancements in energy storage, renewable energy, and sensing technologies. As research continues, we can expect to see even more exciting developments in this field.

Electrochemistry and electrochemical cells are fundamental to our understanding of chemical reactions and electrical energy. From batteries and fuel cells to electroplating and corrosion science, the principles of electrochemistry are applied in a wide range of industries. By understanding the key concepts, components, and applications of electrochemical cells, we can appreciate the importance of this field in modern technology and innovation. The future of electrochemistry holds great promise, with advancements in battery technologies, fuel cells, energy storage, and sensing technologies paving the way for a more sustainable and efficient world.
