Simple Harmonic Motion (SHM) is a fundamental concept in physics that describes the periodic motion of an object around an equilibrium position. Understanding the equations of SHM is crucial for analyzing various physical systems, from pendulums to springs. This blog post will delve into the mathematical foundations of SHM, its applications, and how to solve problems related to it.
Understanding Simple Harmonic Motion

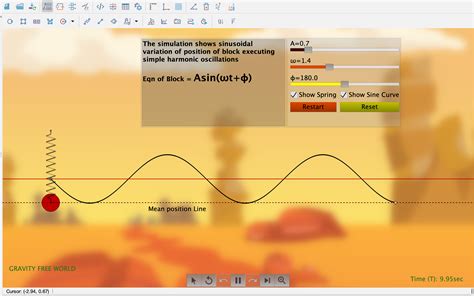

Simple Harmonic Motion occurs when an object experiences a restoring force proportional to its displacement from an equilibrium position. This type of motion is characterized by a sinusoidal waveform, where the displacement, velocity, and acceleration of the object vary sinusoidally with time.

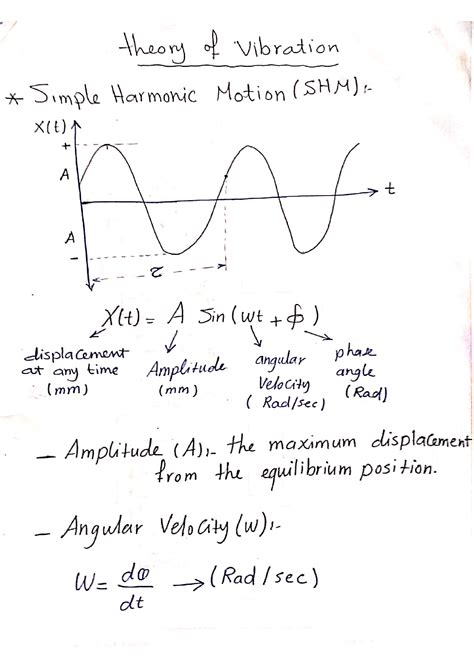

To understand SHM, let's start with the basic equations of SHM. The displacement x of an object undergoing SHM can be described by the equation:
x(t) = A cos(ωt + φ)
Where:
- A is the amplitude, the maximum displacement from the equilibrium position.
- ω is the angular frequency, related to the frequency f by ω = 2πf.
- φ is the phase constant, which determines the initial position of the object.
- t is time.
The velocity v and acceleration a of the object can be derived from the displacement equation:
v(t) = -Aω sin(ωt + φ)
a(t) = -Aω² cos(ωt + φ)
Deriving the Equations of SHM
To derive the equations of SHM, consider an object of mass m attached to a spring with spring constant k. According to Hooke's Law, the restoring force F is given by:
F = -kx
Using Newton's Second Law (F = ma), we get:
m a = -kx
Since acceleration a is the second derivative of displacement x with respect to time (a = d²x/dt²), we can rewrite the equation as:
m (d²x/dt²) = -kx
This is a second-order differential equation. The solution to this equation is:
x(t) = A cos(ωt + φ)
Where ω = √(k/m) is the natural angular frequency of the system.
Applications of SHM
The equations of SHM have wide-ranging applications in various fields of physics and engineering. Some of the key applications include:
- Pendulums: The motion of a simple pendulum for small angles approximates SHM. The period of a pendulum is given by T = 2π√(L/g), where L is the length of the pendulum and g is the acceleration due to gravity.
- Spring-Mass Systems: The motion of a mass attached to a spring is a classic example of SHM. The period of oscillation is given by T = 2π√(m/k).
- Electrical Circuits: In an LC circuit (inductor-capacitor circuit), the charge and current oscillate sinusoidally, similar to SHM. The angular frequency of oscillation is given by ω = 1/√(LC).
- Waves: The motion of particles in a wave (e.g., sound waves, light waves) can be described using the equations of SHM. The displacement of a particle in a wave is given by y(x,t) = A cos(kx - ωt + φ), where k is the wave number.
Solving SHM Problems
To solve problems related to SHM, follow these steps:
- Identify the system: Determine whether the system is a pendulum, spring-mass system, or another type of SHM system.
- Determine the parameters: Identify the amplitude A, angular frequency ω, and phase constant φ.
- Write the displacement equation: Use the equations of SHM to write the displacement x(t) as a function of time.
- Calculate velocity and acceleration: Derive the velocity v(t) and acceleration a(t) from the displacement equation.
- Analyze the motion: Use the equations to analyze the motion of the object, such as finding the maximum velocity, maximum acceleration, or the period of oscillation.
💡 Note: When solving SHM problems, ensure that the units are consistent. For example, if the displacement is in meters, the amplitude should also be in meters.
Energy in SHM
The total mechanical energy of an object undergoing SHM is conserved and is the sum of its kinetic and potential energies. The kinetic energy KE is given by:
KE = (1/2)mv²
The potential energy PE stored in the spring is given by:
PE = (1/2)kx²
The total energy E is:
E = KE + PE = (1/2)mv² + (1/2)kx²
Since v = -Aω sin(ωt + φ) and x = A cos(ωt + φ), the total energy can be expressed as:
E = (1/2)kA²
This shows that the total energy is constant and depends only on the amplitude A and the spring constant k.
Damped and Forced SHM
In real-world systems, SHM is often affected by damping and external forces. Damping occurs due to resistive forces such as friction or air resistance, which cause the amplitude of oscillation to decrease over time. The equations of SHM for a damped system are more complex and involve exponential decay terms.
Forced SHM occurs when an external force is applied to the system, causing it to oscillate at the frequency of the applied force. The equations of SHM for a forced system can be solved using the method of undetermined coefficients or Laplace transforms.
For a damped and forced system, the displacement equation is:
x(t) = A e^(-bt/2m) cos(ωd t + φ)
Where b is the damping coefficient and ωd is the damped angular frequency.
For a forced system, the displacement equation is:
x(t) = A cos(ωf t + φ)
Where ωf is the angular frequency of the applied force.
For a damped and forced system, the displacement equation is:
x(t) = A e^(-bt/2m) cos(ωf t + φ)
Where b is the damping coefficient and ωf is the angular frequency of the applied force.
Resonance in SHM
Resonance occurs when the frequency of the applied force matches the natural frequency of the system. At resonance, the amplitude of oscillation becomes very large, and the system can absorb a significant amount of energy from the applied force. The equations of SHM for a system at resonance are:
x(t) = A cos(ωf t + φ)
Where ωf is the angular frequency of the applied force and φ is the phase constant.
Resonance has important applications in various fields, such as:
- Musical Instruments: The strings, air columns, and membranes in musical instruments vibrate at their natural frequencies to produce sound.
- Structural Engineering: Buildings and bridges are designed to avoid resonance with natural frequencies, such as wind or earthquake vibrations.
- Electrical Circuits: Resonance in LC circuits is used to tune radios and other communication devices to specific frequencies.
Examples of SHM
Let's consider a few examples to illustrate the equations of SHM.
Example 1: Spring-Mass System
A mass of 2 kg is attached to a spring with a spring constant of 8 N/m. The mass is displaced 0.1 m from its equilibrium position and released from rest. Find the displacement, velocity, and acceleration as functions of time.
First, calculate the angular frequency:
ω = √(k/m) = √(8/2) = 2 rad/s
The displacement equation is:
x(t) = 0.1 cos(2t)
The velocity equation is:
v(t) = -0.2 sin(2t)
The acceleration equation is:
a(t) = -0.4 cos(2t)
Example 2: Pendulum
A simple pendulum of length 1 m is displaced 0.2 m from its equilibrium position and released from rest. Find the period of oscillation and the displacement as a function of time.
The period of oscillation is:
T = 2π√(L/g) = 2π√(1/9.8) ≈ 2.01 s
The angular frequency is:
ω = 2π/T ≈ 3.11 rad/s
The displacement equation is:
x(t) = 0.2 cos(3.11t)
Example 3: Damped SHM
A mass of 1 kg is attached to a spring with a spring constant of 4 N/m and a damping coefficient of 2 Ns/m. The mass is displaced 0.1 m from its equilibrium position and released from rest. Find the displacement as a function of time.
The angular frequency is:
ω = √(k/m) = √(4/1) = 2 rad/s
The damped angular frequency is:
ωd = √(ω² - (b/2m)²) = √(4 - 1) = √3 rad/s
The displacement equation is:
x(t) = 0.1 e^(-t) cos(√3 t)
Comparing SHM Systems
To better understand the equations of SHM, let's compare the parameters of different SHM systems in the following table:
| System | Amplitude (A) | Angular Frequency (ω) | Period (T) | Phase Constant (φ) |
|---|---|---|---|---|
| Spring-Mass System | 0.1 m | 2 rad/s | π s | 0 rad |
| Pendulum | 0.2 m | 3.11 rad/s | 2.01 s | 0 rad |
| Damped SHM | 0.1 m | √3 rad/s | N/A | 0 rad |
This table illustrates the differences in the parameters of various SHM systems. The amplitude, angular frequency, period, and phase constant all play crucial roles in determining the motion of the object.
Understanding the equations of SHM and their applications is essential for analyzing and designing various physical systems. By mastering the concepts and techniques discussed in this blog post, you will be well-equipped to tackle problems related to SHM in physics and engineering.
In conclusion, Simple Harmonic Motion is a fundamental concept in physics that describes the periodic motion of an object around an equilibrium position. The equations of SHM provide a mathematical framework for analyzing various physical systems, from pendulums to springs. By understanding the derivation, applications, and solutions of SHM problems, you can gain a deeper insight into the behavior of oscillating systems. Whether you are a student, educator, or professional, mastering SHM is a valuable skill that will enhance your understanding of the physical world.
