Understanding the principles of Equilibrium And Statics is fundamental in various fields of engineering and physics. These concepts are crucial for analyzing structures, machines, and systems to ensure they remain stable and balanced under different conditions. This blog post delves into the core principles of Equilibrium And Statics, their applications, and the mathematical foundations that support them.
Understanding Equilibrium
Equilibrium in physics refers to a state where the net force and net torque acting on an object are zero. This means the object is either at rest or moving at a constant velocity. There are three types of equilibrium:
- Stable Equilibrium: An object returns to its original position after being displaced.
- Unstable Equilibrium: An object moves away from its original position after being displaced.
- Neutral Equilibrium: An object remains in its new position after being displaced.
In Equilibrium And Statics, stable equilibrium is often the desired state, as it ensures the system remains in a balanced condition.
The Principles of Statics
Statics is the branch of mechanics that deals with objects at rest or in uniform motion. The key principles of statics include:
- Newton's First Law: An object at rest stays at rest, and an object in motion stays in motion, unless acted upon by an external force.
- Newton's Second Law: The force acting on an object is equal to its mass times its acceleration (F = ma).
- Newton's Third Law: For every action, there is an equal and opposite reaction.
These laws form the basis for analyzing the forces and torques acting on an object in Equilibrium And Statics.
Mathematical Foundations of Equilibrium And Statics
To analyze equilibrium, we use the following equations:
- Force Equilibrium: The sum of all forces acting on an object must be zero.
- Torque Equilibrium: The sum of all torques acting on an object must be zero.
Mathematically, these can be expressed as:
Force Equilibrium:
ΣFx = 0
ΣFy = 0
ΣFz = 0
Torque Equilibrium:
Στx = 0
Στy = 0
Στz = 0
Where ΣF represents the sum of forces and Στ represents the sum of torques in the x, y, and z directions.
Applications of Equilibrium And Statics
The principles of Equilibrium And Statics are applied in various fields, including:
- Civil Engineering: Designing stable structures like bridges and buildings.
- Mechanical Engineering: Analyzing the stability of machines and mechanisms.
- Aerospace Engineering: Ensuring the stability of aircraft and spacecraft.
- Biomechanics: Studying the stability of the human body and its movements.
In civil engineering, for example, understanding Equilibrium And Statics is crucial for designing structures that can withstand various loads and forces. Engineers use these principles to ensure that buildings, bridges, and other structures remain stable and safe.
Analyzing Equilibrium in Structures
When analyzing the equilibrium of a structure, engineers consider the following steps:
- Identify all external forces acting on the structure.
- Determine the points of application and directions of these forces.
- Apply the force and torque equilibrium equations.
- Solve for any unknown forces or reactions.
For example, consider a simple beam supported at both ends with a load applied in the middle. The forces acting on the beam include the applied load, the reactions at the supports, and the weight of the beam itself. By applying the equilibrium equations, engineers can determine the reactions at the supports and ensure the beam remains stable.
💡 Note: In real-world applications, engineers often use software tools to perform these calculations, especially for complex structures.
Examples of Equilibrium And Statics in Action
Let's consider a few examples to illustrate the principles of Equilibrium And Statics in action.
Example 1: A Simple Beam
Consider a beam of length L supported at both ends with a load P applied at the midpoint. The reactions at the supports can be determined using the equilibrium equations.
| Force | Direction | Magnitude |
|---|---|---|
| Applied Load (P) | Downward | P |
| Reaction at Support A (RA) | Upward | RA |
| Reaction at Support B (RB) | Upward | RB |
Using the force equilibrium equations:
ΣFy = RA + RB - P = 0
Since the beam is symmetric and the load is applied at the midpoint, the reactions at both supports will be equal:
RA = RB = P/2
Example 2: A Lever System
A lever system is another classic example of Equilibrium And Statics. Consider a lever with a fulcrum at one end, a load at the other end, and a force applied at a point between the fulcrum and the load.
Let's denote:
- L1: Distance from the fulcrum to the point of application of the force.
- L2: Distance from the fulcrum to the load.
- F: Applied force.
- P: Load.
For the lever to be in equilibrium, the torque produced by the applied force must equal the torque produced by the load:
F * L1 = P * L2
Solving for the applied force F:
F = (P * L2) / L1
This equation shows how the applied force can be adjusted to balance the load, ensuring the lever remains in equilibrium.
Advanced Topics in Equilibrium And Statics
While the basic principles of Equilibrium And Statics are straightforward, advanced topics can involve more complex analyses. These include:

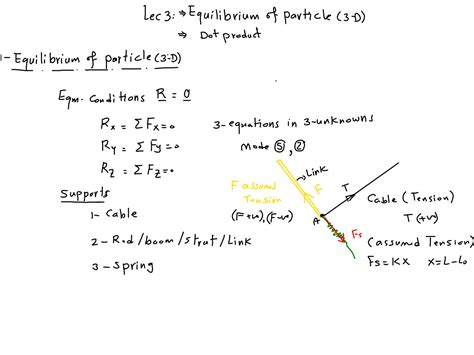

- Three-Dimensional Equilibrium: Analyzing forces and torques in three dimensions.
- Dynamic Equilibrium: Studying objects in uniform motion.
- Friction and Equilibrium: Considering the effects of friction on equilibrium.
In three-dimensional equilibrium, the force and torque equilibrium equations are extended to include the z-direction. This is crucial for analyzing structures and systems that are not confined to a single plane.
Dynamic equilibrium involves objects in uniform motion, where the net force and net torque are still zero, but the object is moving at a constant velocity. This is important in fields like aerospace engineering, where understanding the stability of moving objects is critical.
Friction plays a significant role in many real-world applications of Equilibrium And Statics. Engineers must consider the effects of friction when designing systems that involve moving parts or surfaces in contact.
For example, in a system with friction, the force equilibrium equation might include a frictional force (Ff):
ΣFx = Fapplied - Ff = 0
Where Fapplied is the applied force and Ff is the frictional force. The frictional force can be calculated using the coefficient of friction (μ) and the normal force (N):
Ff = μ * N
Including friction in the analysis ensures a more accurate and realistic model of the system's behavior.
In conclusion, the principles of Equilibrium And Statics are fundamental to understanding and analyzing the stability of structures and systems. By applying the force and torque equilibrium equations, engineers can design stable and safe systems in various fields. Whether in civil engineering, mechanical engineering, or aerospace engineering, the concepts of Equilibrium And Statics provide a solid foundation for ensuring the stability and reliability of designs.
