The world of materials science is vast and intricate, with various scales and metrics used to measure the properties of different materials. One of the most crucial properties is hardness, which determines a material's resistance to deformation, scratching, or indentation. Among the many scales used to measure hardness, the Hrc Hardness Scale stands out as a critical tool in metallurgy and materials engineering. This scale, also known as the Rockwell C scale, is particularly useful for measuring the hardness of steel and other hard materials.
The Basics of the Hrc Hardness Scale
The Hrc Hardness Scale is part of the Rockwell hardness test, which was developed by Stanley P. Rockwell in the early 20th century. The test involves applying a minor load followed by a major load to an indenter, which is then removed, leaving an indentation. The depth of this indentation is measured and converted into a hardness value. The Hrc Hardness Scale specifically uses a diamond cone indenter and a 150 kgf (kilogram-force) major load.
The scale ranges from 20 to 70, with higher values indicating greater hardness. This makes it ideal for measuring the hardness of materials like steel, which are typically harder than those measured on other Rockwell scales, such as the Rockwell B scale (used for softer materials).

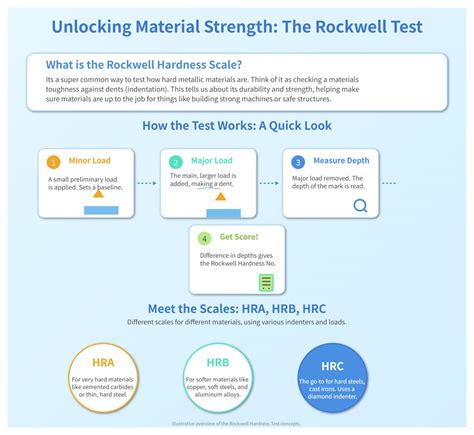

Understanding the Rockwell Hardness Test
The Rockwell hardness test is a widely used method for determining the hardness of materials. It is preferred for its simplicity, speed, and the fact that it causes minimal damage to the test specimen. The test involves several key steps:
- Preparation: The surface of the material to be tested is prepared by ensuring it is flat and free of any defects or contaminants.
- Application of Minor Load: A minor load (typically 10 kgf) is applied to the indenter, which creates a reference point.
- Application of Major Load: A major load (150 kgf for the Hrc Hardness Scale) is applied, causing the indenter to penetrate deeper into the material.
- Removal of Major Load: The major load is removed, but the minor load remains, allowing the material to partially recover from the indentation.
- Measurement: The depth of the indentation is measured and converted into a hardness value using a predefined scale.
🔍 Note: The accuracy of the Rockwell hardness test depends on the proper calibration of the testing equipment and the correct preparation of the test specimen.
Applications of the Hrc Hardness Scale
The Hrc Hardness Scale is extensively used in various industries due to its reliability and precision. Some of the key applications include:
- Metallurgy: In the metallurgy industry, the Hrc Hardness Scale is used to measure the hardness of steel and other alloys. This is crucial for ensuring that the material meets the required specifications for strength and durability.
- Automotive Industry: The automotive industry relies on the Hrc Hardness Scale to test the hardness of components such as gears, shafts, and bearings. This ensures that these components can withstand the stresses and strains of operation.
- Aerospace Industry: In the aerospace industry, the Hrc Hardness Scale is used to test the hardness of critical components like landing gear, engine parts, and structural elements. The high precision of the scale is essential for ensuring the safety and reliability of these components.
- Tool and Die Making: The Hrc Hardness Scale is also used in the tool and die-making industry to measure the hardness of cutting tools, dies, and molds. This ensures that these tools can withstand the rigors of manufacturing processes.
Interpreting Hrc Hardness Values
Interpreting Hrc Hardness Scale values requires an understanding of what the numbers represent. Here is a general guide to interpreting Hrc Hardness Scale values:
| Hrc Value | Material Hardness | Typical Applications |
|---|---|---|
| 20-29 | Soft to Medium | Low-carbon steels, mild steels |
| 30-39 | Medium | Medium-carbon steels, some tool steels |
| 40-49 | Hard | High-carbon steels, some tool steels |
| 50-59 | Very Hard | High-speed steels, some tool steels |
| 60-70 | Extremely Hard | Carbide tools, diamond tools |
It is important to note that the Hrc Hardness Scale values can vary based on the specific composition and heat treatment of the material. Therefore, it is essential to refer to material-specific standards and specifications when interpreting hardness values.
Factors Affecting Hrc Hardness Measurements
Several factors can affect the accuracy and reliability of Hrc Hardness Scale measurements. Understanding these factors is crucial for obtaining consistent and reliable results:
- Surface Finish: The surface finish of the test specimen can significantly affect the hardness measurement. A rough or uneven surface can lead to inaccurate readings.
- Load Application: The correct application of the minor and major loads is essential for accurate measurements. Any deviation from the specified loads can result in erroneous readings.
- Indenter Condition: The condition of the indenter is critical for accurate measurements. A worn or damaged indenter can lead to inconsistent results.
- Material Anisotropy: Some materials exhibit anisotropy, meaning their properties vary depending on the direction of measurement. This can affect the hardness readings and should be taken into account.
🔍 Note: Regular calibration of the testing equipment and proper training of personnel are essential for minimizing errors in Hrc Hardness Scale measurements.
Comparing the Hrc Hardness Scale with Other Hardness Scales
The Hrc Hardness Scale is just one of many hardness scales used in materials science. Other commonly used scales include the Brinell hardness scale, the Vickers hardness scale, and the Rockwell B scale. Each of these scales has its own advantages and limitations:
- Brinell Hardness Scale: This scale uses a spherical indenter and is suitable for measuring the hardness of softer materials. It is less sensitive to surface conditions and can be used on larger specimens.
- Vickers Hardness Scale: This scale uses a diamond pyramid indenter and is suitable for measuring the hardness of a wide range of materials, from very soft to very hard. It is particularly useful for measuring the hardness of thin sections and small components.
- Rockwell B Scale: This scale uses a steel ball indenter and a 100 kgf major load. It is suitable for measuring the hardness of softer materials, such as aluminum and copper alloys.
While each of these scales has its own applications, the Hrc Hardness Scale is particularly well-suited for measuring the hardness of steel and other hard materials. Its high precision and reliability make it a preferred choice in many industries.
Advancements in Hardness Testing Technology
Over the years, advancements in technology have led to significant improvements in hardness testing methods. Modern hardness testers are equipped with advanced features that enhance accuracy and efficiency. Some of the key advancements include:
- Automated Testing: Automated hardness testers can perform multiple tests quickly and accurately, reducing the need for manual intervention and minimizing human error.
- Digital Readouts: Digital readouts provide precise measurements and eliminate the need for manual interpretation of results. This enhances the reliability and consistency of hardness measurements.
- Software Integration: Modern hardness testers are often integrated with software that can analyze and store test data. This allows for easy comparison of results and tracking of material properties over time.
- Non-Destructive Testing: Non-destructive testing methods, such as ultrasonic testing, are being developed to measure hardness without causing damage to the test specimen. This is particularly useful for testing critical components where preservation of the material is essential.
These advancements have made hardness testing more efficient, accurate, and versatile, enabling industries to better understand and utilize the properties of materials.
🔍 Note: Regular maintenance and calibration of hardness testing equipment are essential for ensuring the accuracy and reliability of measurements.
Conclusion
The Hrc Hardness Scale is a fundamental tool in materials science, providing a reliable and precise method for measuring the hardness of steel and other hard materials. Its applications span various industries, from metallurgy and automotive to aerospace and tool-making. Understanding the principles of the Rockwell hardness test, interpreting Hrc Hardness Scale values, and recognizing the factors that affect measurements are crucial for obtaining accurate and consistent results. As technology continues to advance, hardness testing methods will become even more sophisticated, further enhancing our ability to understand and utilize the properties of materials.
