In the realm of military and aerospace engineering, precision and standardization are paramount. One of the most critical standards in this field is the Mil Std 1913, which outlines the specifications for the Picatinny rail system. This standard has revolutionized the way firearms and accessories are designed and integrated, providing a versatile and robust platform for mounting various optical sights, lasers, and other tactical equipment.
Understanding Mil Std 1913

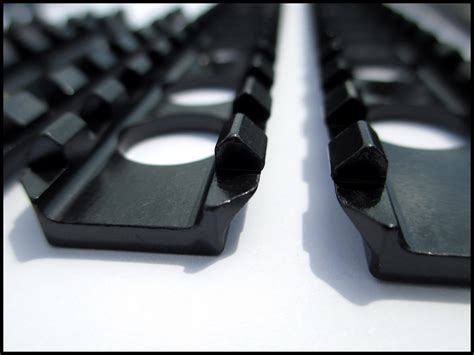

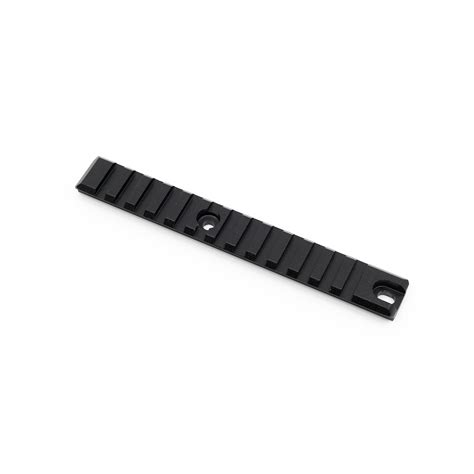

The Mil Std 1913 standard, also known as the Picatinny rail, is a modular accessory rail interface system. It was developed by the U.S. Army Picatinny Arsenal and has since become the de facto standard for mounting accessories on firearms. The Picatinny rail system features a series of slots with a specific spacing and dimensions, allowing for the secure attachment of various devices.
Key Features of Mil Std 1913
The Mil Std 1913 rail system offers several key features that make it indispensable in military and tactical applications:
- Modularity: The Picatinny rail allows for the easy attachment and detachment of accessories, enabling users to customize their firearms for different missions and scenarios.
- Versatility: The standard spacing and dimensions of the Picatinny rail ensure compatibility with a wide range of accessories, including scopes, red dot sights, lasers, and grips.
- Durability: The rail system is designed to withstand the rigors of military use, with a robust construction that can endure harsh environments and heavy use.
- Precision: The precise engineering of the Picatinny rail ensures that accessories are mounted securely and accurately, enhancing the overall performance of the firearm.
Applications of Mil Std 1913
The Mil Std 1913 rail system is used in a variety of applications, including:
- Military Firearms: The Picatinny rail is widely used on military rifles, pistols, and shotguns, allowing soldiers to mount a variety of tactical accessories.
- Aerospace and Defense: The standard is also employed in aerospace and defense applications, where precision and reliability are crucial.
- Law Enforcement: Law enforcement agencies utilize the Picatinny rail to equip their firearms with specialized accessories, enhancing their effectiveness in the field.
- Civilian Use: The versatility of the Picatinny rail has made it popular among civilian shooters and hunters, who appreciate the ability to customize their firearms with various accessories.
Benefits of Mil Std 1913
The adoption of the Mil Std 1913 standard offers numerous benefits, including:
- Interoperability: The standardized design ensures that accessories from different manufacturers are compatible, promoting interoperability and reducing the need for proprietary systems.
- Cost-Effectiveness: The widespread use of the Picatinny rail system has led to economies of scale, making accessories more affordable for both military and civilian users.
- Enhanced Performance: The precise mounting of accessories improves the overall performance of the firearm, enhancing accuracy, speed, and effectiveness.
- Ease of Use: The modular design of the Picatinny rail allows for quick and easy attachment and detachment of accessories, making it convenient for users to adapt their firearms to different situations.
Mil Std 1913 vs. Other Rail Systems
While the Mil Std 1913 rail system is the most widely used, there are other rail systems available, each with its own advantages and disadvantages. Some of the most common alternatives include:
- Weaver Rail: The Weaver rail system is similar to the Picatinny rail but has a different spacing and dimensions. It is less common but still used in some applications.

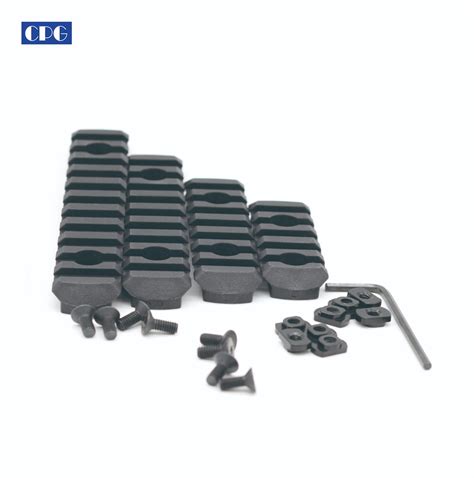

- M-LOK: The M-LOK system is a more recent development that offers a slimmer profile and lighter weight compared to the Picatinny rail. It is often used in conjunction with Picatinny rails for mounting accessories.
- KeyMod: The KeyMod system is another alternative that provides a modular mounting solution. It is known for its lightweight design and ease of use but is less common than the Picatinny rail.
Here is a comparison table of the different rail systems:
| Rail System | Spacing | Dimensions | Advantages | Disadvantages |
|---|---|---|---|---|
| Mil Std 1913 (Picatinny) | 0.394 inches | 0.206 inches | Widely used, versatile, durable | Heavier, bulkier |
| Weaver | 0.375 inches | 0.180 inches | Similar to Picatinny, compatible with some accessories | Less common, fewer accessories available |
| M-LOK | N/A | N/A | Lighter, slimmer profile | Requires adapters for Picatinny accessories |
| KeyMod | N/A | N/A | Lightweight, modular | Less common, fewer accessories available |
🔍 Note: The spacing and dimensions listed are approximate and may vary slightly depending on the manufacturer.
Installation and Maintenance of Mil Std 1913
Installing and maintaining a Mil Std 1913 rail system is straightforward, but it requires attention to detail to ensure proper functionality. Here are the steps for installation and maintenance:
Installation
To install a Picatinny rail on a firearm, follow these steps:
- Ensure the firearm is unloaded and safe to handle.
- Align the Picatinny rail with the mounting points on the firearm.
- Secure the rail using the appropriate screws or bolts, ensuring it is tightly fastened.
- Verify that the rail is properly aligned and secure before attaching any accessories.
Maintenance
Regular maintenance of the Picatinny rail system is essential to ensure its longevity and performance. Here are some maintenance tips:
- Clean the rail regularly to remove dirt, debris, and corrosion.
- Inspect the rail for any signs of damage or wear, and replace it if necessary.
- Lubricate the rail and mounting points to ensure smooth operation and prevent corrosion.
- Check the tightness of the mounting screws or bolts periodically to ensure the rail remains secure.
🛠️ Note: Always follow the manufacturer's instructions for installation and maintenance to ensure the best results.
Future of Mil Std 1913
The Mil Std 1913 rail system has been a cornerstone of military and tactical firearm design for decades. As technology continues to advance, the Picatinny rail system is likely to evolve as well. Future developments may include:
- Advanced Materials: The use of lighter and stronger materials, such as advanced composites, could make the Picatinny rail even more durable and versatile.
- Integrated Electronics: The integration of electronic components, such as sensors and communication devices, could enhance the functionality of the Picatinny rail system.
- Modular Designs: Further advancements in modular design could allow for even greater customization and adaptability, making the Picatinny rail system more versatile than ever.
As the military and tactical communities continue to innovate, the Mil Std 1913 rail system will remain a critical component, providing a reliable and versatile platform for mounting accessories and enhancing firearm performance.
In conclusion, the Mil Std 1913 rail system has revolutionized the way firearms and accessories are designed and integrated. Its modularity, versatility, durability, and precision make it an indispensable tool for military, law enforcement, and civilian users alike. As technology continues to advance, the Picatinny rail system will undoubtedly evolve, ensuring its relevance and importance in the years to come.
