Normal Qrs Duration

Understanding the intricacies of electrocardiogram (ECG) readings is crucial for healthcare professionals, as it provides valuable insights into the heart's electrical activity. One of the key parameters in an ECG reading is the Normal QRS Duration. This measurement is essential for diagnosing various cardiac conditions and ensuring accurate treatment plans.

What is QRS Duration?

The QRS complex in an ECG represents the depolarization of the ventricles, which is the process by which the heart’s lower chambers contract to pump blood. The duration of the QRS complex is measured from the beginning of the Q wave to the end of the S wave. This measurement is critical because it can indicate the presence of certain cardiac abnormalities.

Understanding Normal QRS Duration

The Normal QRS Duration typically ranges from 0.06 to 0.10 seconds, or 60 to 100 milliseconds. This range is considered normal for most individuals. However, it’s important to note that slight variations can occur based on factors such as age, gender, and overall health. For instance, athletes or individuals with certain physiological adaptations may have a slightly longer QRS duration without any underlying pathology.

Clinical Significance of QRS Duration

The clinical significance of QRS duration lies in its ability to detect various cardiac conditions. Abnormalities in QRS duration can indicate issues such as:

Bundle branch blocks
Ventricular hypertrophy
Electrolyte imbalances
Myocardial infarction
Conduction delays

For example, a prolonged QRS duration (greater than 0.12 seconds) can suggest a bundle branch block, where the electrical impulses are delayed as they travel through the ventricles. This condition can lead to inefficient heart contractions and may require further investigation and treatment.

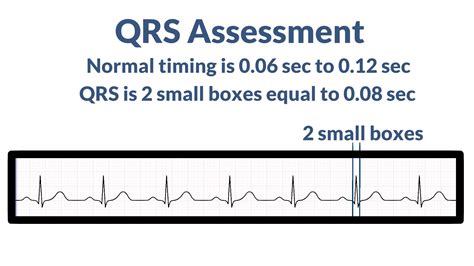

Measuring QRS Duration

Measuring the QRS duration involves several steps:

Obtain a standard 12-lead ECG.
Identify the QRS complex in multiple leads.
Measure the duration from the beginning of the Q wave to the end of the S wave.
Compare the measurements across different leads to ensure accuracy.

It’s essential to use a calibrated ECG machine and follow standard protocols to ensure precise measurements. Any discrepancies in the measurement process can lead to misdiagnosis and inappropriate treatment.

📝 Note: Always verify the calibration of the ECG machine before use to ensure accurate readings.

Interpreting QRS Duration

Interpreting QRS duration requires a comprehensive understanding of the ECG waveform and the patient’s clinical context. Here are some key points to consider:

Normal QRS Duration: 0.06 to 0.10 seconds. Indicates normal ventricular depolarization.
Prolonged QRS Duration: Greater than 0.12 seconds. May suggest bundle branch blocks, ventricular hypertrophy, or other conduction abnormalities.

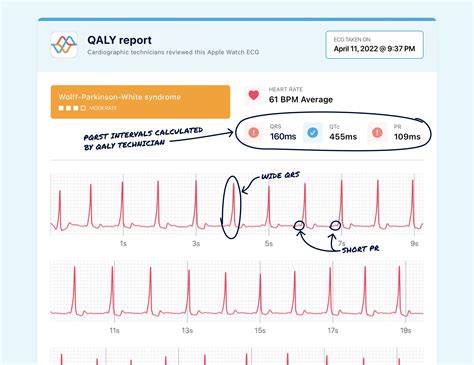

Shortened QRS Duration: Less than 0.06 seconds. Rare but can indicate pre-excitation syndromes like Wolff-Parkinson-White (WPW) syndrome.

In addition to the duration, the morphology of the QRS complex should also be examined. Abnormal shapes or patterns can provide further clues about the underlying cardiac condition.

Common Conditions Associated with Abnormal QRS Duration

Several cardiac conditions are commonly associated with abnormal QRS duration. Understanding these conditions can help in the accurate diagnosis and management of patients.

Bundle Branch Blocks

Bundle branch blocks occur when there is a delay or blockage in the electrical conduction system of the heart. This can result in a prolonged QRS duration. There are two main types:

Right Bundle Branch Block (RBBB): Characterized by a wide QRS complex with a typical pattern in leads V1 and V2.
Left Bundle Branch Block (LBBB): Characterized by a wide QRS complex with a typical pattern in leads V5 and V6.

Both types of bundle branch blocks can lead to inefficient heart contractions and may require further evaluation and treatment.

Ventricular Hypertrophy

Ventricular hypertrophy refers to the thickening of the heart’s ventricular walls, often due to increased workload or pressure. This condition can result in a prolonged QRS duration and is often seen in patients with hypertension or aortic stenosis. The ECG may show specific patterns, such as increased voltage in the precordial leads, which can help in the diagnosis.

Electrolyte Imbalances

Electrolyte imbalances, particularly those involving potassium and calcium, can affect the heart’s electrical activity and result in abnormal QRS duration. For example, hyperkalemia (high potassium levels) can cause a widened QRS complex and is a medical emergency requiring immediate intervention.

Myocardial Infarction

Myocardial infarction, commonly known as a heart attack, can cause changes in the QRS complex. While the primary ECG changes in myocardial infarction involve the ST segment and T waves, a prolonged QRS duration may also be present, especially in cases of extensive myocardial damage.

Conduction Delays

Conduction delays can occur at various levels of the heart’s electrical system, leading to abnormal QRS duration. These delays can be due to intrinsic cardiac disease, such as cardiomyopathy, or extrinsic factors, such as medications that affect cardiac conduction.

Diagnostic Approach to Abnormal QRS Duration

When encountering an abnormal QRS duration, a systematic diagnostic approach is essential. This approach typically involves the following steps:

History and Physical Examination: Gather a detailed medical history and perform a thorough physical examination to identify any underlying conditions or risk factors.
ECG Analysis: Carefully analyze the ECG to determine the exact nature of the QRS abnormality, including its duration and morphology.
Additional Testing: Depending on the findings, additional tests such as echocardiography, stress testing, or cardiac magnetic resonance imaging (MRI) may be required to further evaluate the heart’s structure and function.
Laboratory Tests: Check for electrolyte imbalances, cardiac biomarkers, and other relevant laboratory parameters.

Collaborating with a cardiologist or electrophysiologist may be necessary for complex cases to ensure accurate diagnosis and appropriate management.

📝 Note: Always consider the patient's clinical context when interpreting ECG findings, as abnormal QRS duration can have various causes.

Management of Abnormal QRS Duration

The management of abnormal QRS duration depends on the underlying cause and the patient’s overall health status. Treatment options may include:

Medications: Drugs such as antiarrhythmics, beta-blockers, or calcium channel blockers may be prescribed to manage conduction abnormalities or underlying cardiac conditions.
Device Therapy: In some cases, implantable devices such as pacemakers or defibrillators may be necessary to correct conduction delays or prevent life-threatening arrhythmias.
Lifestyle Modifications: Addressing risk factors such as hypertension, diabetes, and high cholesterol through lifestyle changes can help improve overall cardiac health.
Surgical Interventions: In severe cases, surgical procedures such as coronary artery bypass grafting (CABG) or valve replacement may be required.

Regular follow-up and monitoring are essential to ensure the effectiveness of the treatment plan and to make any necessary adjustments.

Preventive Measures

Preventive measures play a crucial role in maintaining a Normal QRS Duration and overall cardiac health. Some key preventive strategies include:

Regular Exercise: Engaging in regular physical activity can help improve cardiac function and reduce the risk of conduction abnormalities.
Healthy Diet: Consuming a balanced diet rich in fruits, vegetables, and whole grains can support heart health.
Avoiding Tobacco and Excessive Alcohol: Quitting smoking and limiting alcohol consumption can significantly reduce the risk of cardiac diseases.
Managing Chronic Conditions: Effectively managing conditions such as hypertension, diabetes, and high cholesterol can prevent complications that affect the heart’s electrical activity.
Regular Check-ups: Regular medical check-ups and ECG screenings can help detect any abnormalities early, allowing for timely intervention.

By adopting these preventive measures, individuals can significantly reduce their risk of developing cardiac conditions and maintain a Normal QRS Duration.

📝 Note: Always consult with a healthcare professional before starting any new exercise or dietary regimen.

Case Studies

To illustrate the clinical significance of QRS duration, let’s consider a few case studies:

Case Study 1: Bundle Branch Block

A 65-year-old patient presents with symptoms of shortness of breath and fatigue. An ECG reveals a QRS duration of 0.14 seconds with a typical pattern of right bundle branch block. Further evaluation with echocardiography confirms the diagnosis, and the patient is started on appropriate medications to manage the condition.

Case Study 2: Ventricular Hypertrophy

A 50-year-old patient with a history of hypertension presents with chest pain. An ECG shows a QRS duration of 0.11 seconds with increased voltage in the precordial leads, suggestive of left ventricular hypertrophy. The patient is referred for further cardiac evaluation and management.

Case Study 3: Electrolyte Imbalance

A 40-year-old patient with a history of kidney disease presents with muscle weakness and irregular heartbeats. An ECG reveals a QRS duration of 0.13 seconds with a widened QRS complex. Laboratory tests confirm hyperkalemia, and the patient is treated with appropriate interventions to correct the electrolyte imbalance.

Future Directions in QRS Duration Research

Research in the field of QRS duration continues to evolve, with advancements in technology and medical knowledge. Some areas of ongoing research include:

Advanced ECG Analysis: Developing more sophisticated algorithms and machine learning techniques to enhance the accuracy of ECG interpretation and QRS duration measurement.
Non-Invasive Imaging: Utilizing non-invasive imaging modalities such as cardiac MRI to provide detailed insights into cardiac structure and function, complementing ECG findings.
Personalized Medicine: Tailoring treatment plans based on individual genetic and physiological factors to optimize outcomes for patients with abnormal QRS duration.

These advancements hold promise for improving the diagnosis and management of cardiac conditions associated with abnormal QRS duration.

📝 Note: Staying updated with the latest research and clinical guidelines is essential for healthcare professionals to provide the best possible care to their patients.

Conclusion

Understanding the Normal QRS Duration and its clinical implications is vital for healthcare professionals. By accurately measuring and interpreting QRS duration, clinicians can detect various cardiac conditions and implement appropriate treatment plans. Regular preventive measures and ongoing research will continue to enhance our ability to manage and treat these conditions effectively, ultimately improving patient outcomes and quality of life.
