Welding Symbols Fillet Weld

Welding is a critical process in various industries, from construction to manufacturing, and understanding welding symbols is essential for ensuring the quality and integrity of welded structures. Among the various types of welding symbols, the Welding Symbols Fillet Weld is one of the most commonly used. This symbol represents a type of weld where two pieces of metal are joined at an angle, typically 90 degrees, creating a triangular cross-section. Mastering the interpretation and application of fillet weld symbols is crucial for welders, engineers, and inspectors alike.

Table of Contents

Understanding Fillet Welds

A fillet weld is a weld of approximately triangular cross-section joining two surfaces at right angles to each other in a lap joint, T-joint, or corner joint. The size of a fillet weld is specified by the leg lengths of the isosceles right triangle that forms the cross-section of the weld. Fillet welds are versatile and can be used in a variety of applications, making them a staple in welding practices.

Components of a Fillet Weld Symbol

The fillet weld symbol consists of several key components that provide detailed information about the weld. These components include:

Arrow: Points to the location of the weld on the drawing.
Reference Line: A horizontal line that contains the weld symbol and other relevant information.
Weld Symbol: A right-angle symbol that indicates a fillet weld.
Leg Size: The size of the fillet weld, usually specified in millimeters or inches.
Tail: Contains additional information such as welding process, weld size, and other specifications.

Interpreting Fillet Weld Symbols

Interpreting fillet weld symbols involves understanding the various elements and their meanings. Here are the key steps to interpret a fillet weld symbol:

Identify the Arrow: Determine where the weld is located on the drawing by following the arrow.
Examine the Reference Line: Look at the reference line to find the weld symbol and other specifications.
Analyze the Weld Symbol: The right-angle symbol indicates a fillet weld. The legs of the symbol represent the size of the weld.
Check the Leg Size: The leg size is usually specified next to the weld symbol and indicates the dimensions of the weld.
Review the Tail: The tail may contain additional information such as the welding process, weld size, and other specifications.

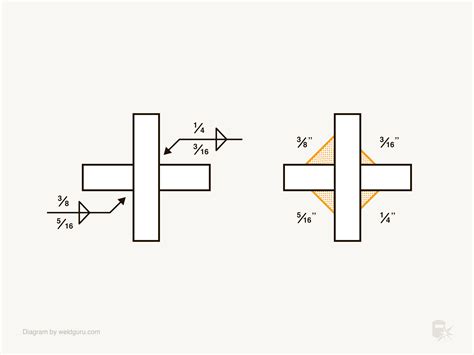

For example, a fillet weld symbol with a leg size of 6 mm would indicate a fillet weld with legs of 6 mm each, forming an isosceles right triangle with a 6 mm leg.

Common Fillet Weld Symbols

There are several common fillet weld symbols that welders and engineers should be familiar with. These symbols provide specific instructions for the type and size of the weld. Some of the most common fillet weld symbols include:

Single Fillet Weld: A single fillet weld is used to join two pieces of metal at a 90-degree angle.
Double Fillet Weld: A double fillet weld involves welding both sides of the joint, providing additional strength and stability.
Intermittent Fillet Weld: An intermittent fillet weld is used when the weld is not continuous along the joint. The symbol includes a dash or series of dashes to indicate the intermittent nature of the weld.

Understanding these symbols is crucial for ensuring that the weld meets the required specifications and standards.

Applications of Fillet Welds

Fillet welds are used in a wide range of applications across various industries. Some of the most common applications include:

Construction: Fillet welds are used in the construction of buildings, bridges, and other structures to join steel beams and columns.
Manufacturing: In manufacturing, fillet welds are used to join metal parts in machinery, equipment, and vehicles.
Automotive: Fillet welds are used in the automotive industry to join metal components in car frames, chassis, and other parts.
Shipbuilding: In shipbuilding, fillet welds are used to join metal plates and sections to create the hull and other structural components.

Fillet welds are versatile and can be used in various joint configurations, making them a popular choice for many welding applications.

Best Practices for Fillet Welding

To ensure the quality and integrity of fillet welds, it is essential to follow best practices. Some of the key best practices for fillet welding include:

Preparation: Properly prepare the metal surfaces by cleaning and removing any contaminants, such as rust, paint, or oil.
Joint Fit-Up: Ensure that the joint fit-up is correct and that the pieces of metal are properly aligned.
Welding Technique: Use the appropriate welding technique and parameters for the type of metal and thickness being welded.
Inspection: Inspect the weld for defects such as porosity, cracks, or incomplete fusion. Use non-destructive testing methods such as visual inspection, magnetic particle testing, or ultrasonic testing.

Following these best practices will help ensure that the fillet weld meets the required specifications and standards.

🔍 Note: Always refer to the relevant welding standards and specifications for the specific requirements and guidelines for fillet welding.

Common Mistakes to Avoid

When performing fillet welding, there are several common mistakes that should be avoided to ensure the quality and integrity of the weld. Some of the most common mistakes include:

Inadequate Preparation: Failing to properly prepare the metal surfaces can lead to poor weld quality and defects.
Incorrect Joint Fit-Up: Improper alignment of the metal pieces can result in a weak or defective weld.
Incorrect Welding Parameters: Using the wrong welding parameters, such as voltage, amperage, or travel speed, can lead to poor weld quality.
Insufficient Inspection: Failing to inspect the weld for defects can result in undetected issues that compromise the weld's integrity.

By avoiding these common mistakes, welders can ensure that their fillet welds meet the required specifications and standards.

🛑 Note: Always follow safety guidelines and use appropriate personal protective equipment (PPE) when performing welding operations.

Advanced Fillet Welding Techniques

For more complex welding applications, advanced fillet welding techniques may be required. Some of the advanced techniques include:

Multi-Pass Welding: This technique involves making multiple passes over the weld to build up the weld size and strength.
Backing Bars: Using backing bars to support the weld and prevent burn-through, especially in thin materials.
Preheating: Preheating the metal before welding to reduce the risk of cracking and improve weld quality.
Post-Weld Heat Treatment: Applying heat treatment after welding to relieve residual stresses and improve the mechanical properties of the weld.

These advanced techniques can help achieve higher-quality welds in more demanding applications.

Training and Certification

To become proficient in fillet welding, it is essential to undergo proper training and certification. Many welding schools and training programs offer courses specifically focused on fillet welding. These courses cover the fundamentals of welding, including welding symbols, techniques, and best practices. Additionally, certification programs such as those offered by the American Welding Society (AWS) provide recognition of welding skills and knowledge.

Obtaining certification can enhance a welder's career prospects and demonstrate their competence in fillet welding.

📚 Note: Continuous learning and staying updated with the latest welding technologies and techniques are crucial for maintaining proficiency in fillet welding.

Conclusion

Understanding and interpreting Welding Symbols Fillet Weld is essential for ensuring the quality and integrity of welded structures. Fillet welds are versatile and used in a wide range of applications across various industries. By following best practices, avoiding common mistakes, and utilizing advanced techniques, welders can achieve high-quality fillet welds that meet the required specifications and standards. Proper training and certification further enhance a welder’s skills and knowledge, making them proficient in fillet welding. Mastering the interpretation and application of fillet weld symbols is crucial for welders, engineers, and inspectors alike, ensuring the success of welding projects and the safety of welded structures.
